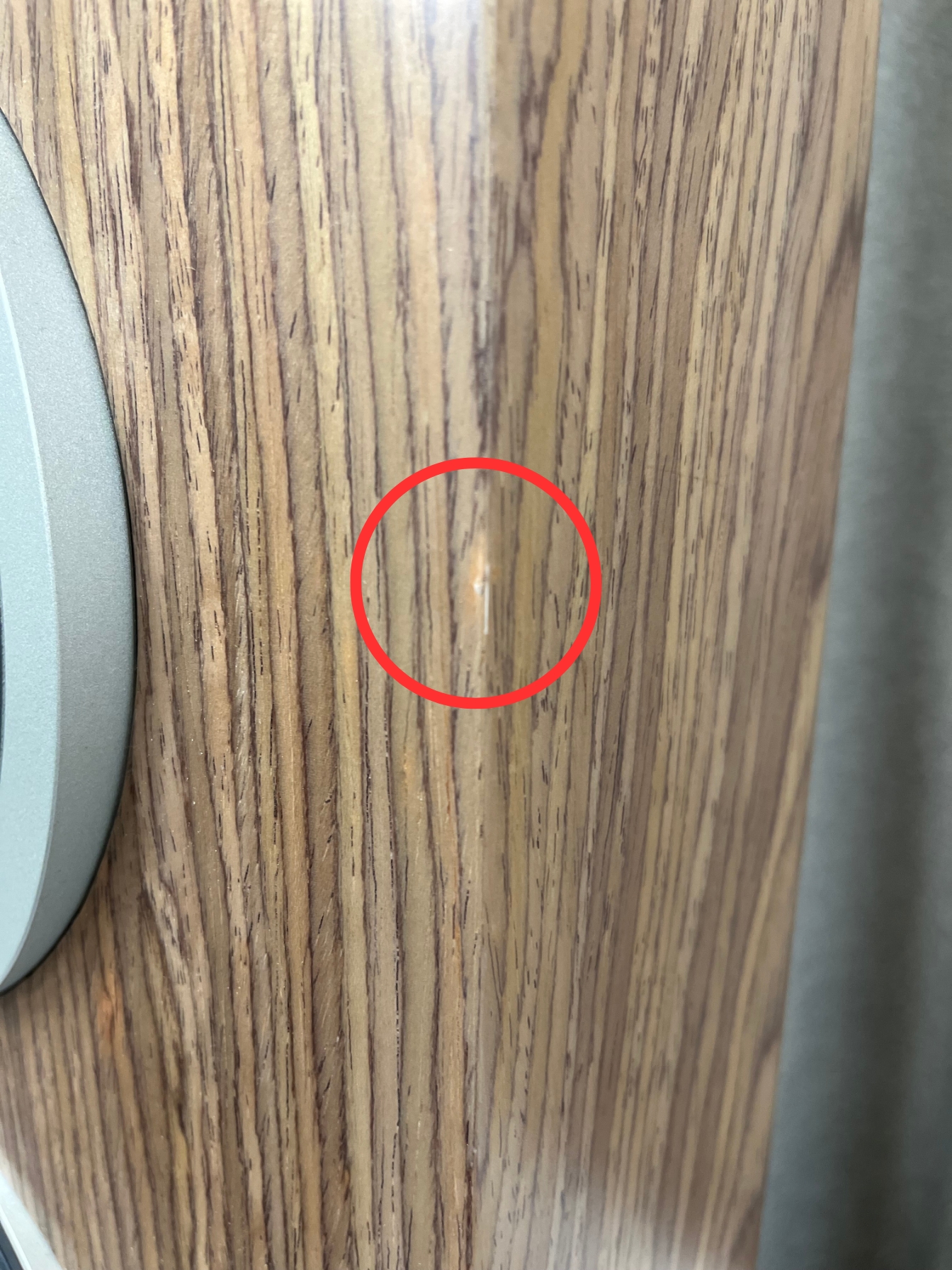

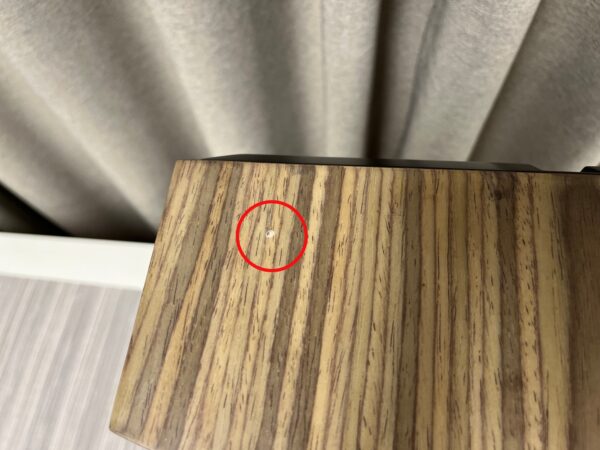

DALI Rubicon LCR, Walnut, 1Pc (B-Stock)

Wood Fibre Cones

The wood fibre cone gives a light, rigid and uneven surface for even, piston-like motion and greatly reduced surface resonance.

Compact Cabinet Construction

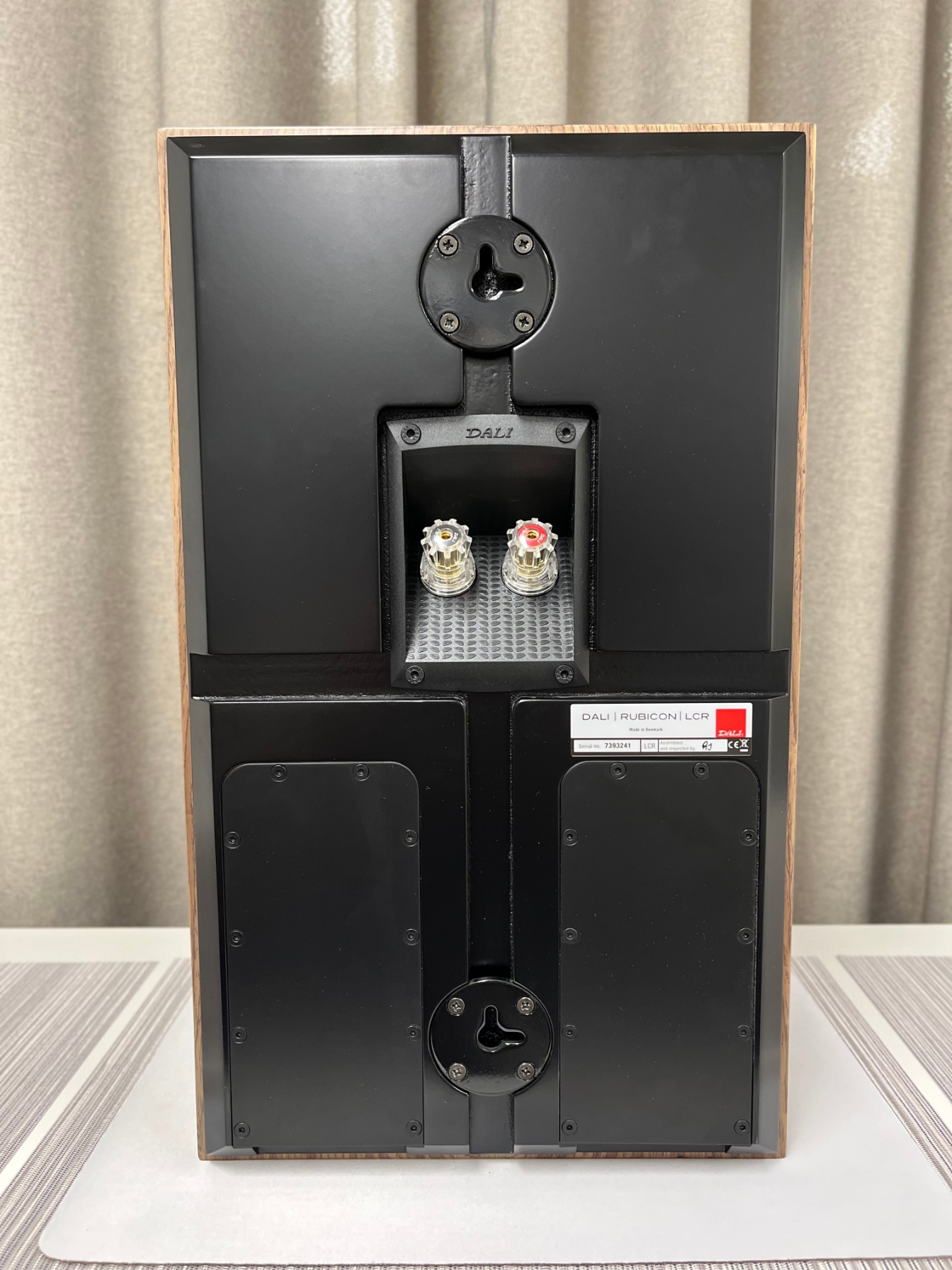

An ingenious bass port configuration built into the cabinet back panel delivers an unrivaled bass response.

Patented SMC

With an SMC magnet pole-piece surrounded by a slitted copper cap, the effect of the SMC is focused and maximised to reduce distortion.

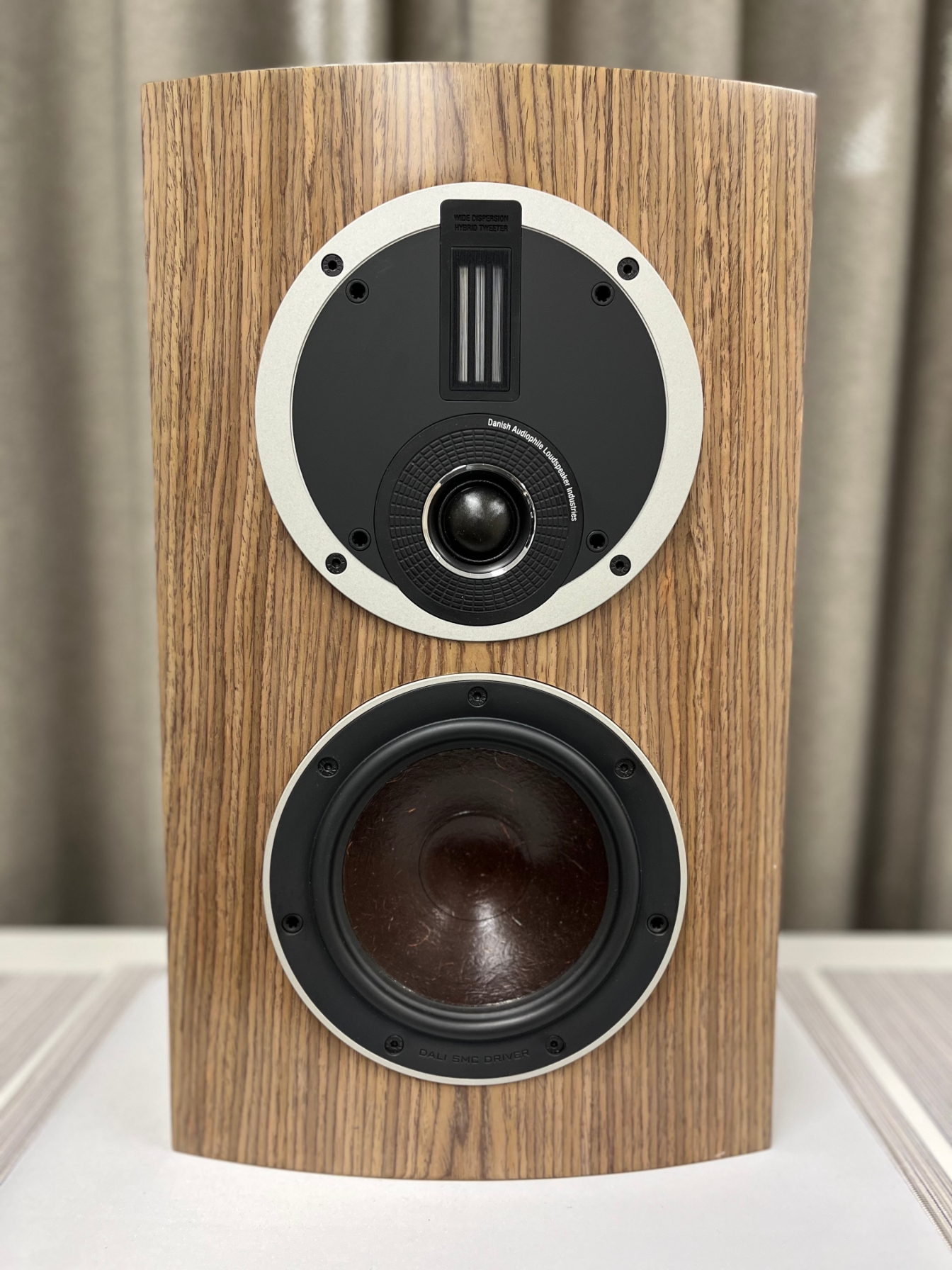

Hybrid Tweeter

Our signature DALI hybrid tweeter combines a dome tweeter and planar element for exceptional high-frequency rendering.

BORN TO STAND OUT

A dazzling, multipurpose performer

When it comes to sound performance and design, the wall-mounted RUBICON LCR is simply born to stand out. Sporting a hybrid tweeter module and a low-loss, 6½” wood fibre driver, the compact RUBICON LCR delivers wide dynamic range and a bass response that’s unrivalled in its class. And with its rotatable hybrid tweeter module, the LCR delivers a dazzling performance as a Left, Centre or Right-channel speaker.

PATENTED SMC

Reducing distortion with SMC

The RUBICON LCR draws on the heritage from the SMC-based ‘Linear Drive System’, introduced with the EPICON series. With SMC, we achieve extremely low distortion and maximise detail, even at low volume. The drivers are manufactured in-house at our production facilities in central Denmark and feature the latest in magnet motor technology. The RUBICON LCR sets new audio quality standards for Hi-Fi lovers around the world.

DALI HYBRID TWEETER

The master of wide dispersion

The DALI hybrid tweeter module makes use of a soft dome tweeter and a planar element, working together to create an amazing rendition of the high frequencies. The voice-coil used in the RUBICON LCR soft dome is extremely light and agile, helping it deliver a broader bandwidth. The planar tweeter is the master of wide dispersion and, in combination with the soft dome, reaches as low as 2.5 kHz, providing continuous wide dispersion as the soft dome becomes more directional at higher frequencies. This extreme bandwidth combined with the ultra-wide dispersion is an important part of the DALI sound philosophy.

6½” WOOFER

Drawing on technology from EPICON series

The woofer cone has a light, rigid and randomly uneven structure, which lowers the complexity of the central part of the motor, ensures piston-like movement, significantly reduces the possibility of surface resonance and minimises distortion. Designed specifically for the RUBICON LCR, the soft, low-loss rubber surround includes a cast-aluminium chassis designed for maximum airflow around the cone and magnet system.

COMPACT CABINET

Richly defined detail & big bass

Featuring the same hybrid tweeter and low-loss wood fibre driver as our floorstanding RUBICON speakers, the LCR also includes an ingenious bass port configuration built into the back panel. Using the wall surface to extend its acoustic properties, the speaker delivers such unrivalled bass response that there’s no need to add a subwoofer to your setup. The RUBICON LCR is a true work of audio art to hang on your wall.

Specifications

Frequency Range [+/- 3] dB [Hz]: 59 – 34,000
Sensitivity [2.83V/1m] [dB]: 89
Nominal Impedance [ohms]: 4
Maximum SPL [dB]: 109
Recommended Amp. Power [Watt]: 20-150
Crossover Frequency [Hz]: 3,100/14,000
Crossover Principle: 2 + 1⁄2-way
High Frequency Driver: 1 x 29 mm softdome, 1 x 17 x 45 mm ribbon
Low Frequency Driver(s): 1 x 6½”
Enclosure Type: Bass reflex
Bass Reflex Tuning Frequency [Hz]: 49
Connection Input(s): Single
Recommended Placement: On wall/Shelf/Table/ Below TV-screen
Recommended Distance from rear wall to speaker’s rear side [cm]: 0-30
Dimensions (H x W x D) [mm]: 465 x 278 x 142
Dimensions (H x W x D) [inches]: 18.4 x 11.0 x 5.6
Neto weight: 8.0kg

Package Contents: DALI Rubicon LCR, Walnut, 1Pc, Rubber feet, Polishing cloth, Manual.
