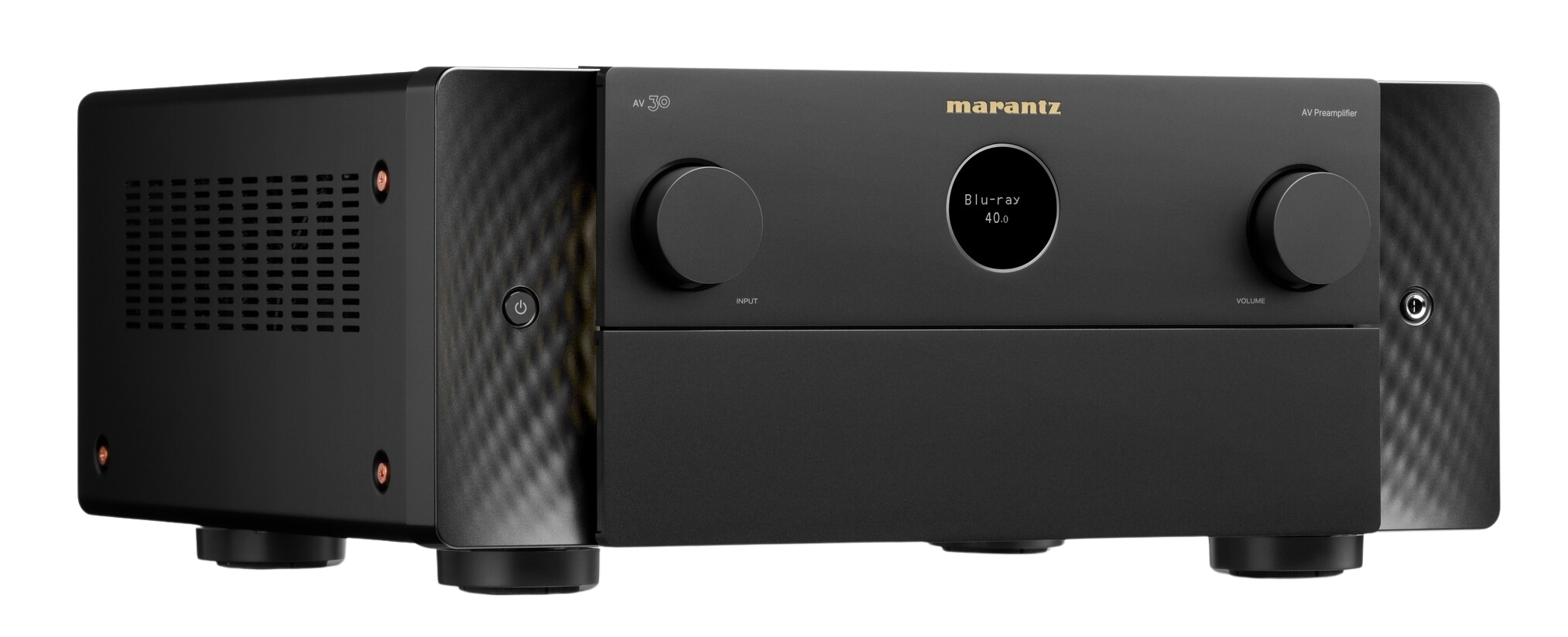

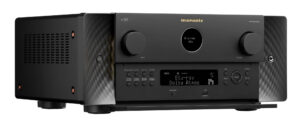

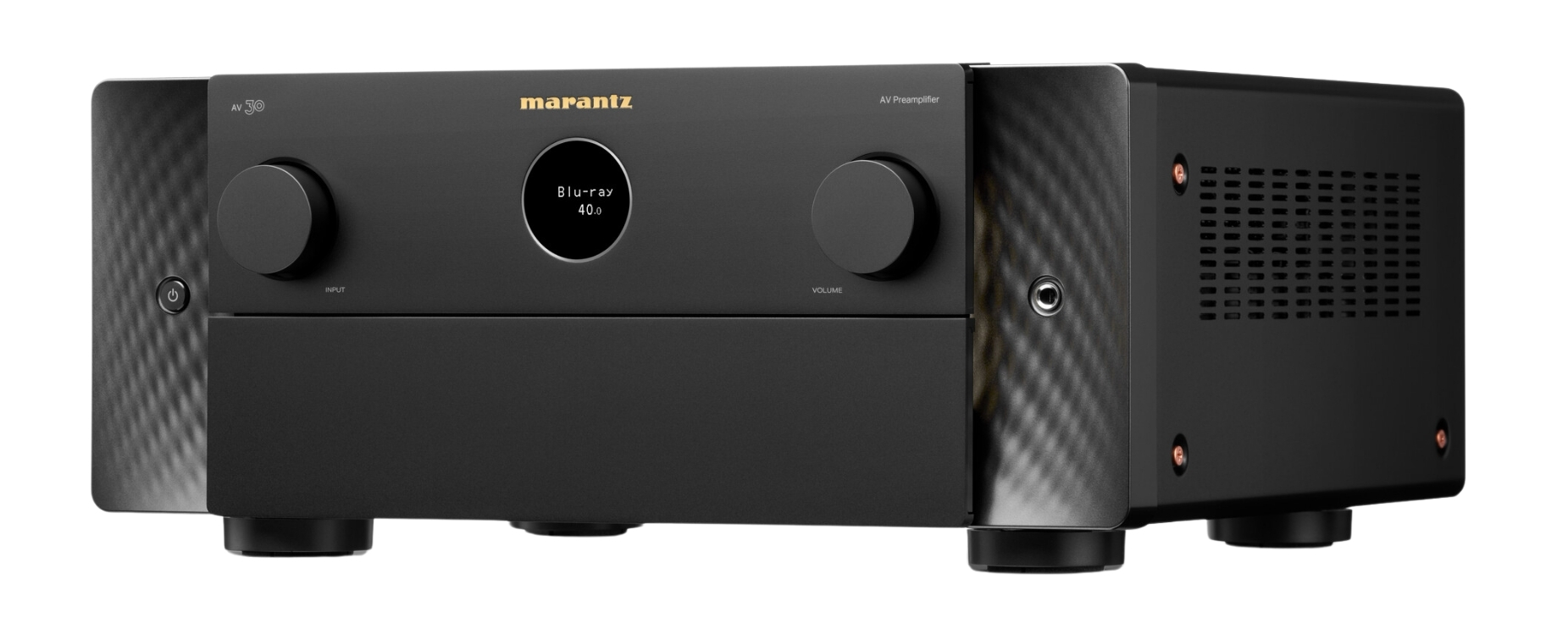

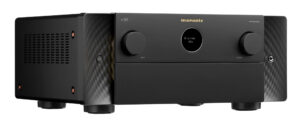

Marantz AV Preamplifier AV30, 11.4 channels

Elevated Listening Begins Here

AV 30 is engineered to bring exceptional cinema sound into your home. Advanced Marantz technology and expert craftsmanship ensure your entertainment is always delivered with powerful precision—from an elegant, timeless design.

Exceptional Performance

Enjoy every movie moment with immersive realism and lifelike detail. AV 30 delivers an outstanding theater experience—in your home.

Ultimate Flexibility

The 11.4-channel onboard processing supports a wide range of speaker configurations. Perfect for all forms of immersive audio suitable for even large home theater systems.

Technology Leadre

AV 30 comes packed with support for the latest high-resolution movie formats, plus 8K video compatibility, room optimization, and Powered by HEOS™ technology to simplify and elevate your listening.

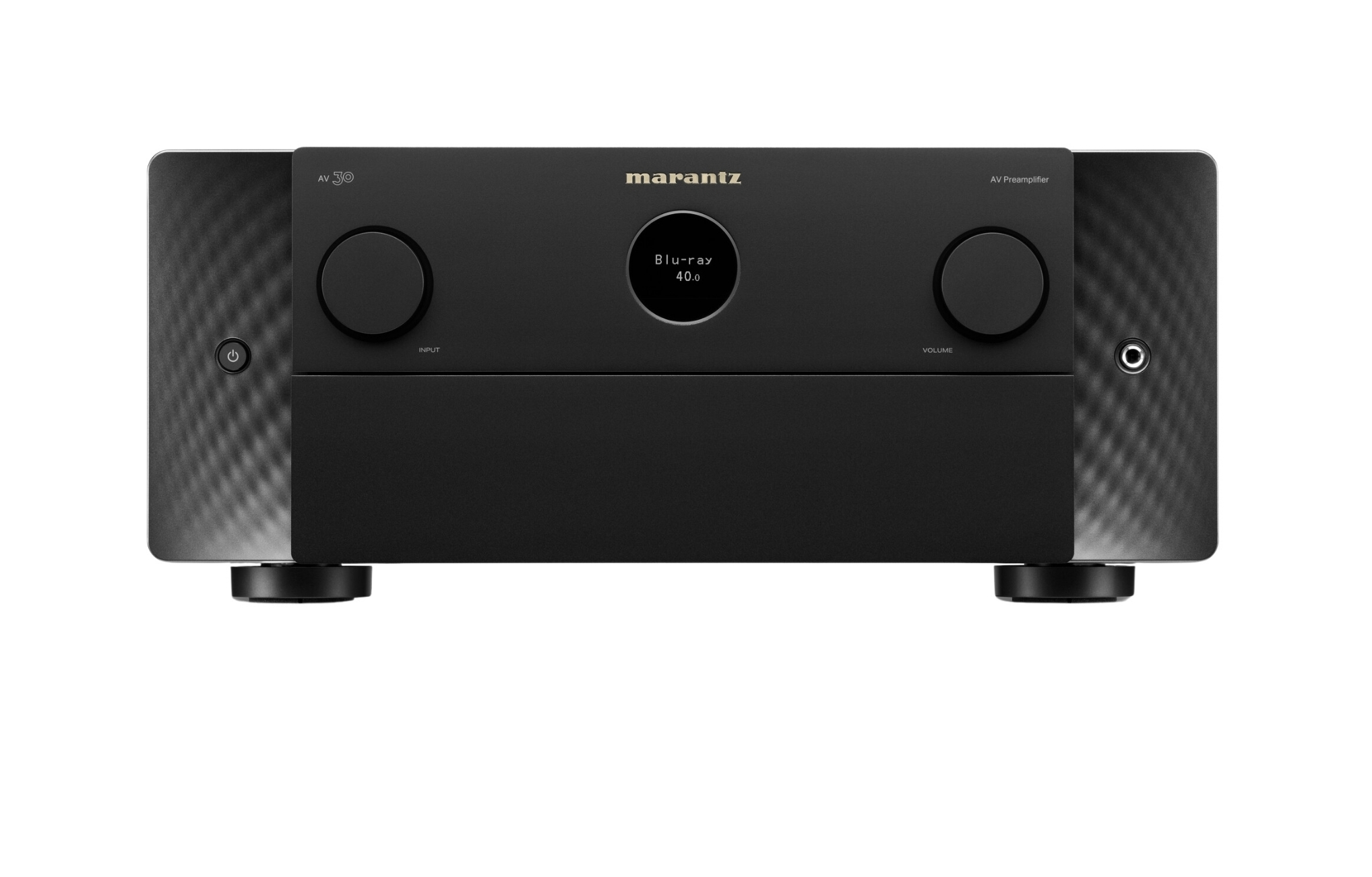

Timeless Design

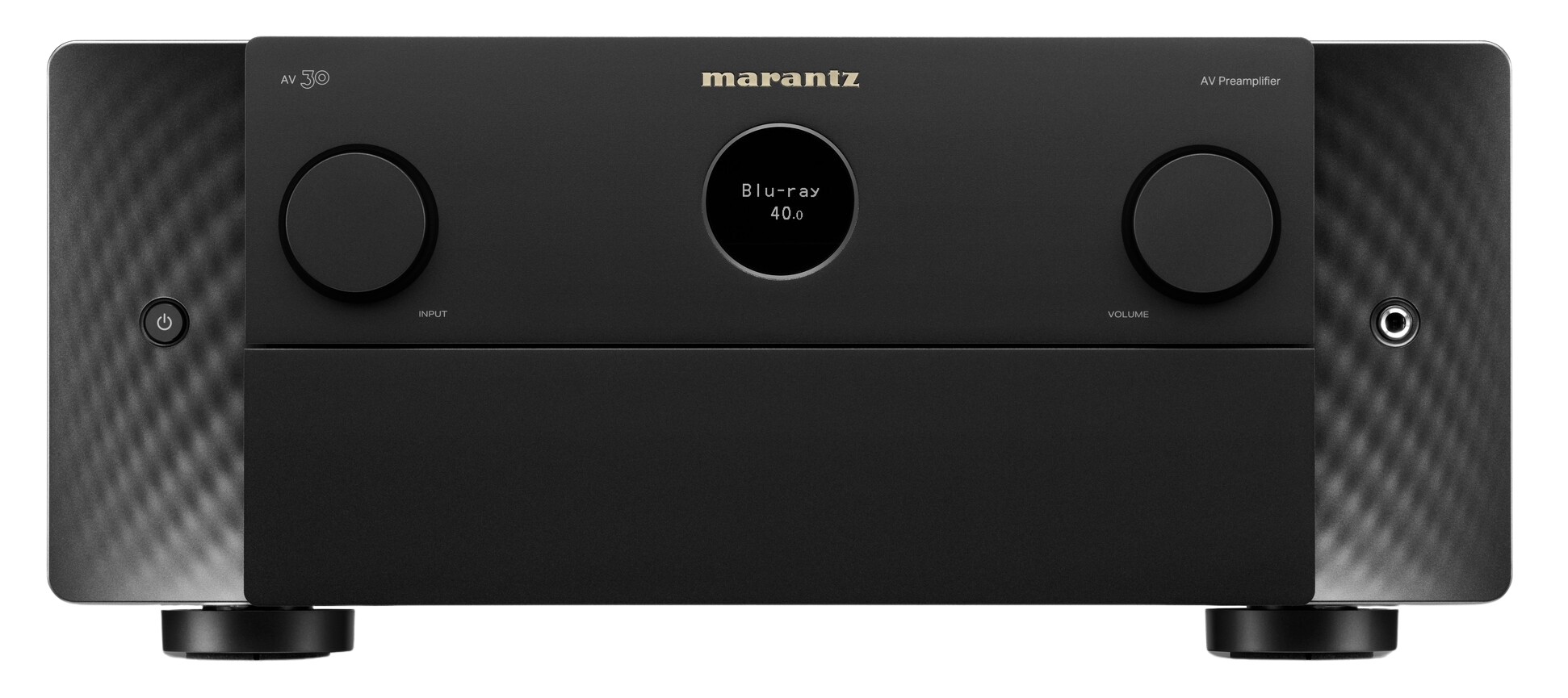

A modern expression of timeless design principles, AV 30 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Specifications

Multichannel Surround

DTS-HD Master Audio, DTS:X,DTS Virtual:X, DTS Neural:X Yes / Yes / Yes
Dolby TrueHD, Dolby Atmos,Dolby Atmos Height Virtualization, Dolby Surround Yes / Yes / Yes / Yes
IMAX Enhanced Yes
Auro 3D Yes
360 Reality Audio / MPEG H Yes / Yes
Multichannel Stereo Yes
Maximum Number of Processing Channels (Pre-Amp) 11.4

Sound Enhancements

Copper-Plated Chassis Yes
Toroidal Power Transformer Yes
Current Feedback Topology Yes
Hyper Dynamic Amplifier Modules (HDAM) Yes (HDAM-SA2)
Pure Direct Yes
Gold-Plated RCA Terminals Yes
Glock Jitter Reducer Yes
Audyssey MultEQ XT32
Audyssey Dynamic EQ/ Dynamic Volume Yes / Yes
Audyssey LFC Yes
Dirac Live Upgradability Yes
Compressed Audio Enhancer: MDAX2 Yes

Network

HEOS Multi-Room and Streaming Yes
Bluetooth Retransmit for Bluetooth Headphones Yes
Apple HomePod Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless Formats:FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (up to DSD5.6)
Gapless Playback Yes (FLAC, WAV, ALAC, DSD)
AirPlay Yes (AirPlay2)
Internet Radio Yes (TuneIn)
Spotify* Connect Yes
Pandora No
Other Streaming Services * Amazon Music / TIDAL / Deezer / Napster / Soundcloud
Roon Ready Yes
Compatible with Remote App for Smartphones Marantz AVR Remote
Compatible with Remote App for Tablets Android / iOS / Amazon Kindle
Ethernet Yes
WiFi Yes
Bluetooth Yes

HDMI

HDMI Inputs: Rear / Front 7 / No
HDCP2.3 Support Yes
HDMI Outputs: Main / Zone 2 / 1
HDMI Upscaling 1080P/4K to 8K
GUI Overlay on HDMI Yes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-Through In / Out 7 / 2 (up to 40Gbps)
Enhanced ARC Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-Through for Gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes
HDMI Pass-Through in Standby Mode Yes
CEC Yes
DSD Audio Capability Yes
Audio Return Channel Yes
Auto LipSync Yes

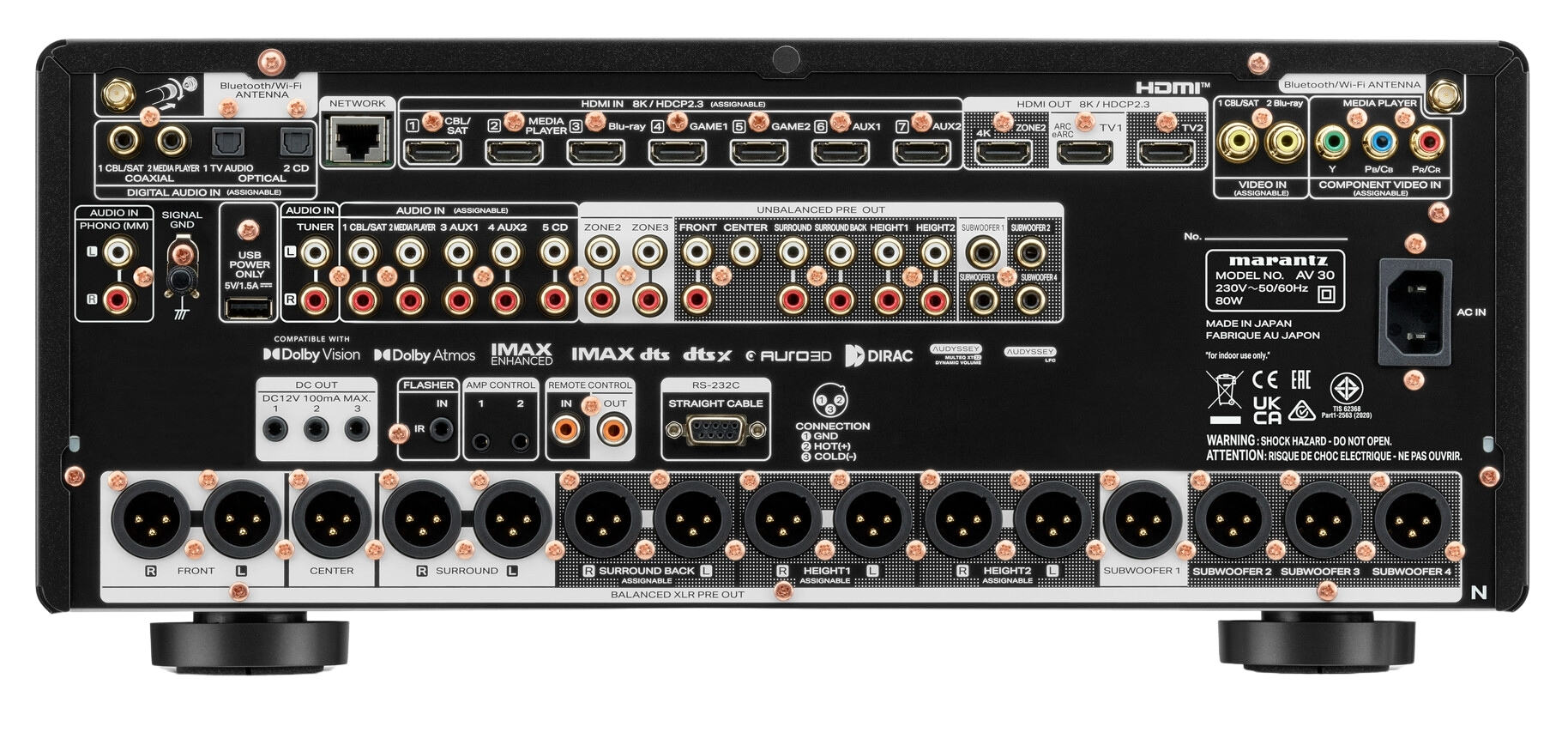

Inputs / Outputs

Composite In / Out 2 / No
Component In / Out 1 / No
HDMI In / Out 7 / 3
Multi-room Video Out: Video/HDMI No/Yes
Analog In / Out 6 (1x XLR) / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-room Out: Analog / Digital 2 / No
Multi-Channel Pre-Amp Out Yes (11.4 RCA and 11.4 XLR)
Subwoofer Out 4 (independent) RCA / XLR
Speaker A/B Assignable Pre-Out
Bi-Amp Drive Assignable Pre-Out
Front USB Input / USB Audio Yes / Yes
USB Power Supply (Rear) Yes
AM/FM Tuner Yes

Multi-Room

Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-Out No / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 3
HDMI Diagnostics Yes
HEOS Multi-Room Integrated Yes

Others

Auto Speaker Setup by Microphone Audyssey MultEQ XT32, Dirac Live (upgrade)

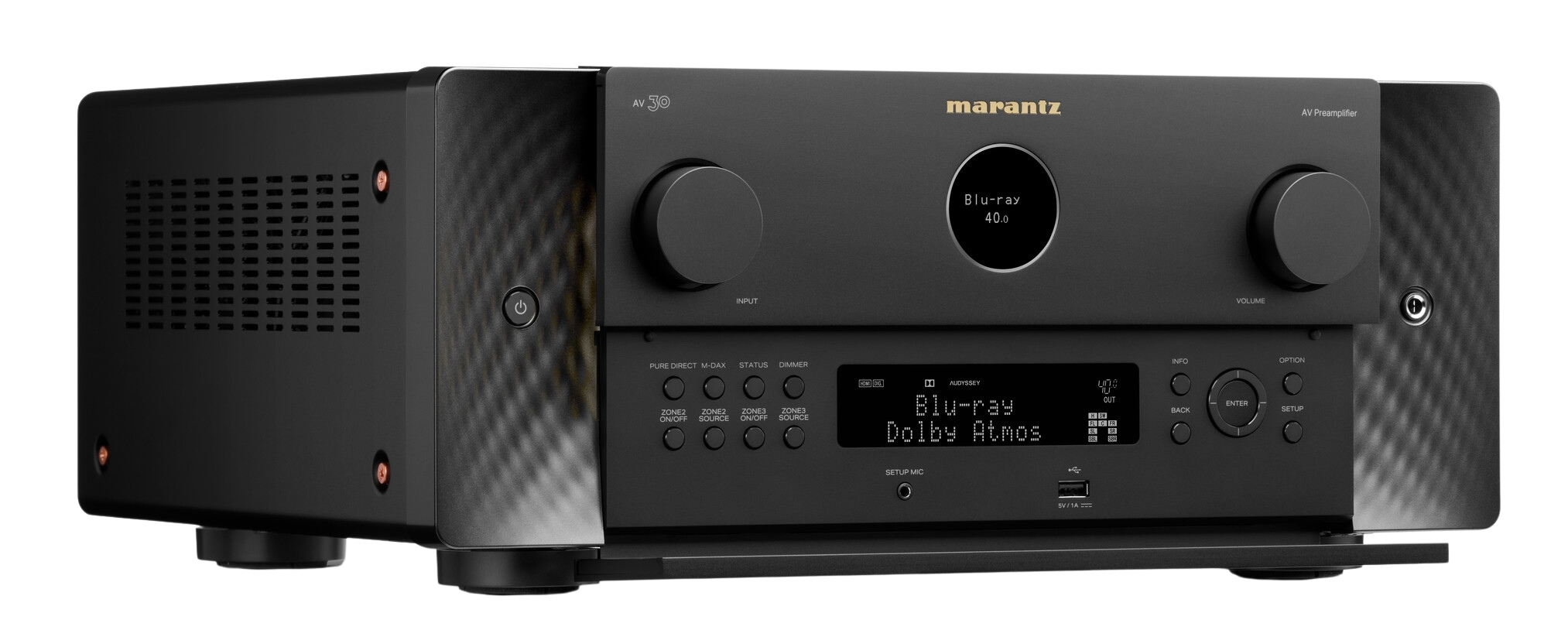

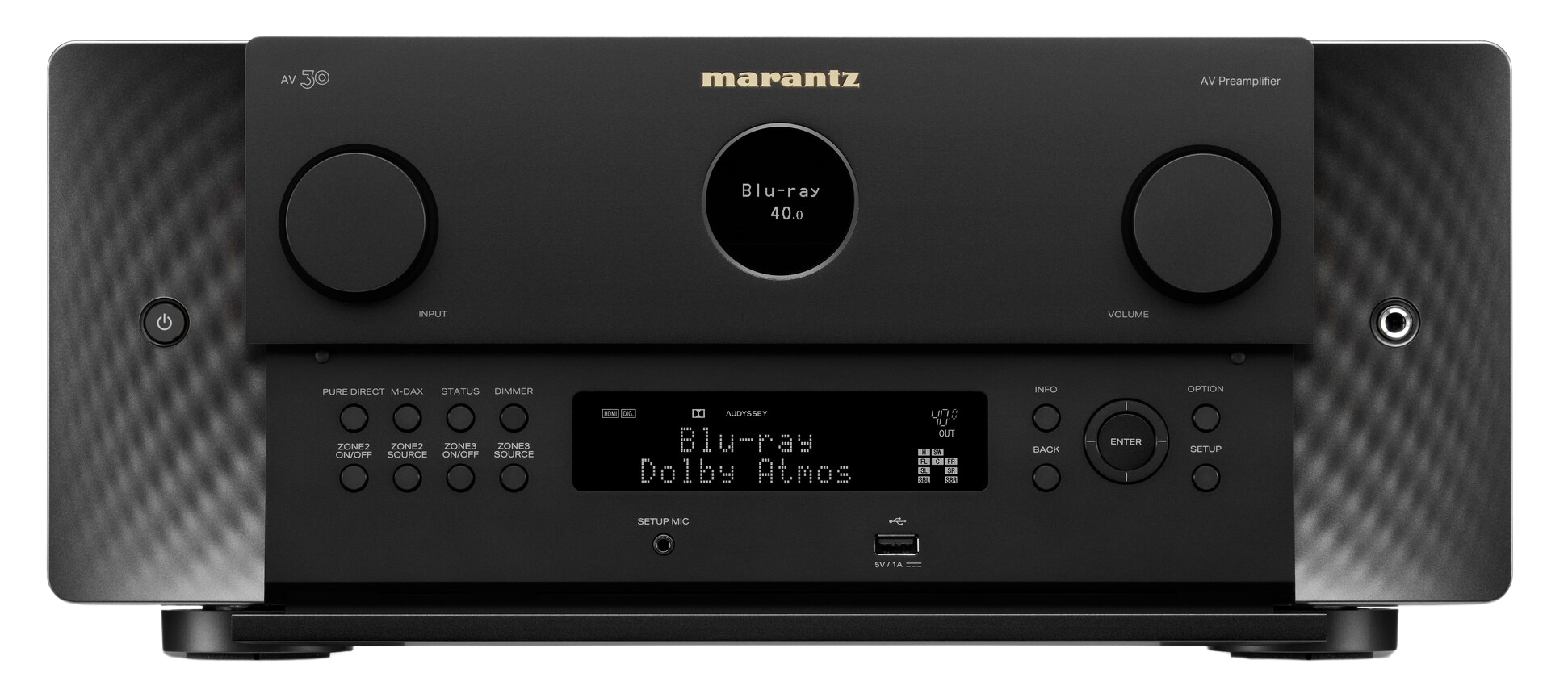

Front display 2-line FLD + Port Hole OLED
Graphic User Interface Modern HD GUI
GUI Languages ​​9
Setup Assistant Yes
Smart Select Yes
Firmware Update by Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
Auto Power Off Yes
Sleep Timer Yes

General

Metal Front Panel Yes

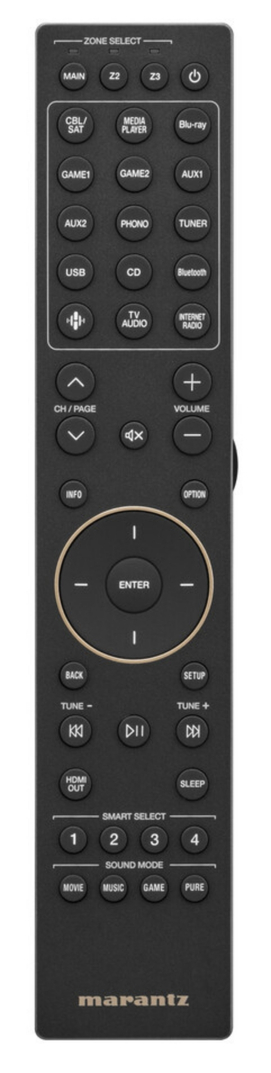

System Remote Control RC053SR
Backlit Yes
Power Consumption 80 W
Standby Consumption 0.2 W
CEC Standby Consumption 0.5 W
Network Standby Consumption 2.0 W
Maximum dimensions
Antenna: Horizontal: (W x D x H) mm 442 x 414 x 190.5
Antenna: Vertical: (W x D x H) mm 442 x 414 x 254
Without Antenna: (W x D x H) mm 442 x 396.2 x 190.5
Weight 11.1 kg
