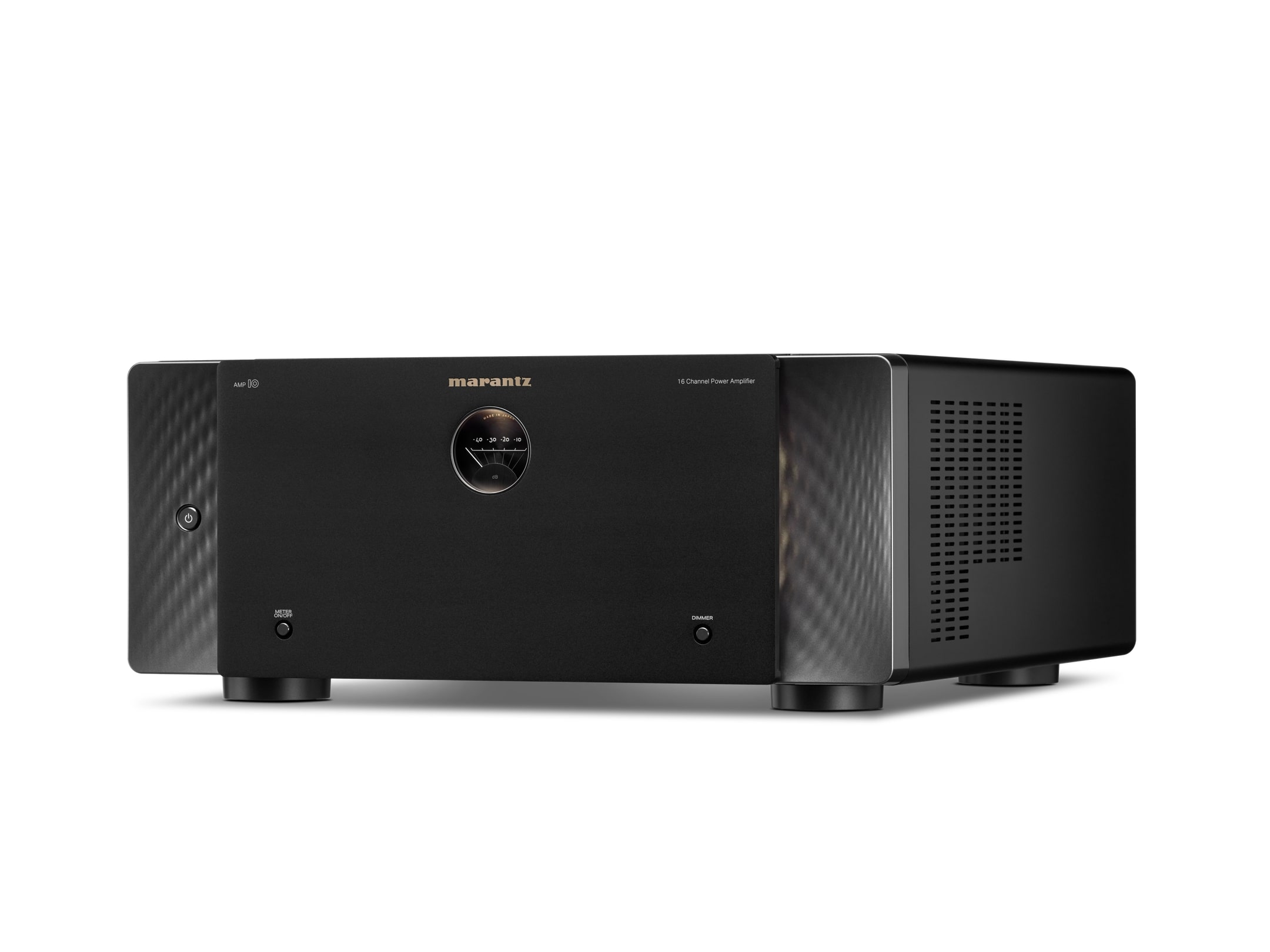

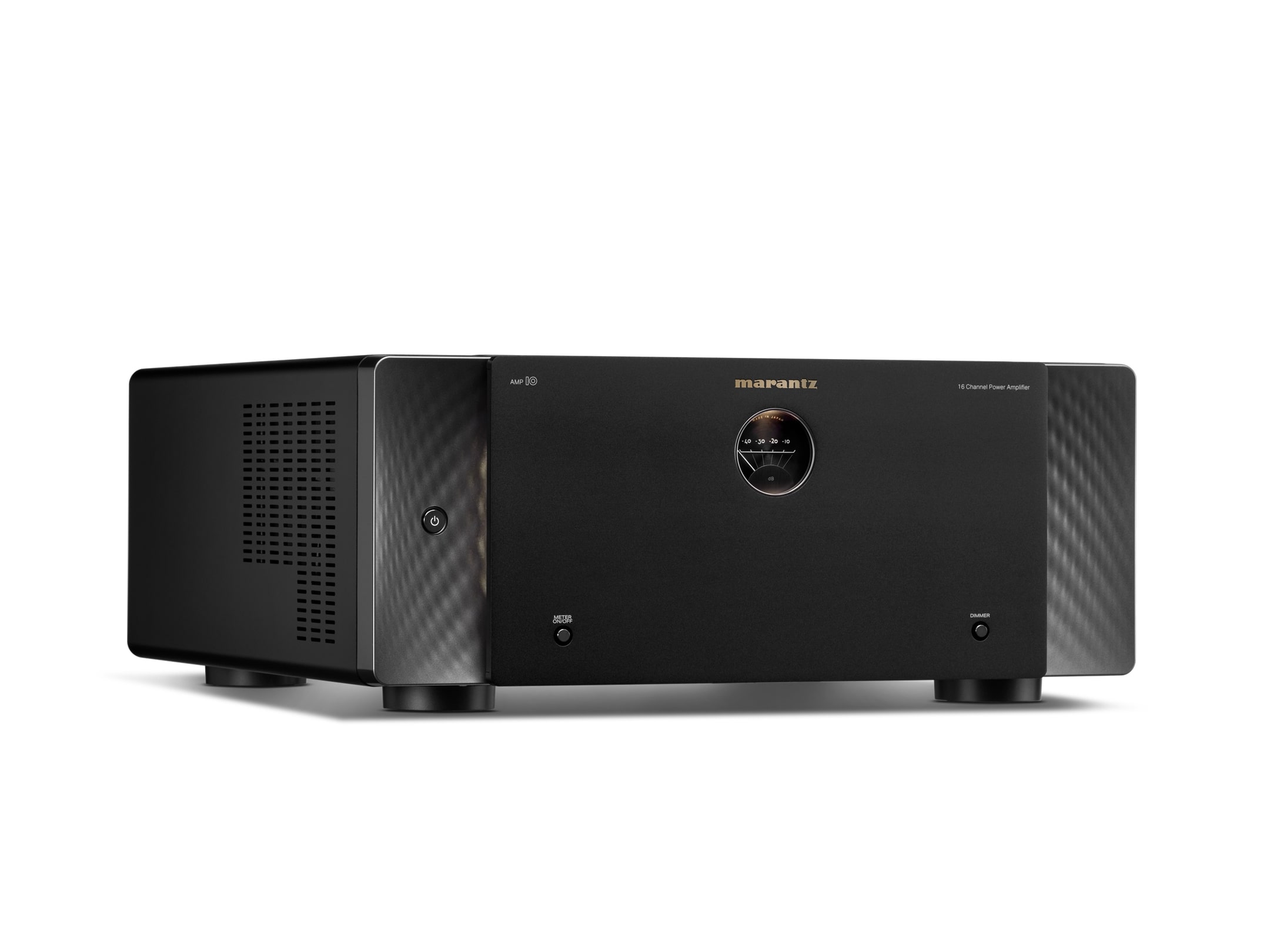

Marantz 16Ch Power Amplifier AMP 10

The Apex of Home Cinema

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world’s most demanding home theaters.

Exquisite Design

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

Ultimate Performance

We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.

Sound Master Tuned

The Marantz Sound Master meticulously tuned AMP 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Technology Leader

AMP 10 is engineered using best-in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.

Specifications

Multi-Room CI

IP Control / RS232 Control / Web Control / App Control No / Yes / No / No
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Input/ Output 1 / 1

Others

Front Display Level Meter
Firmware Update by Network / USB / RS232C No / No / No
Auto Power off Yes

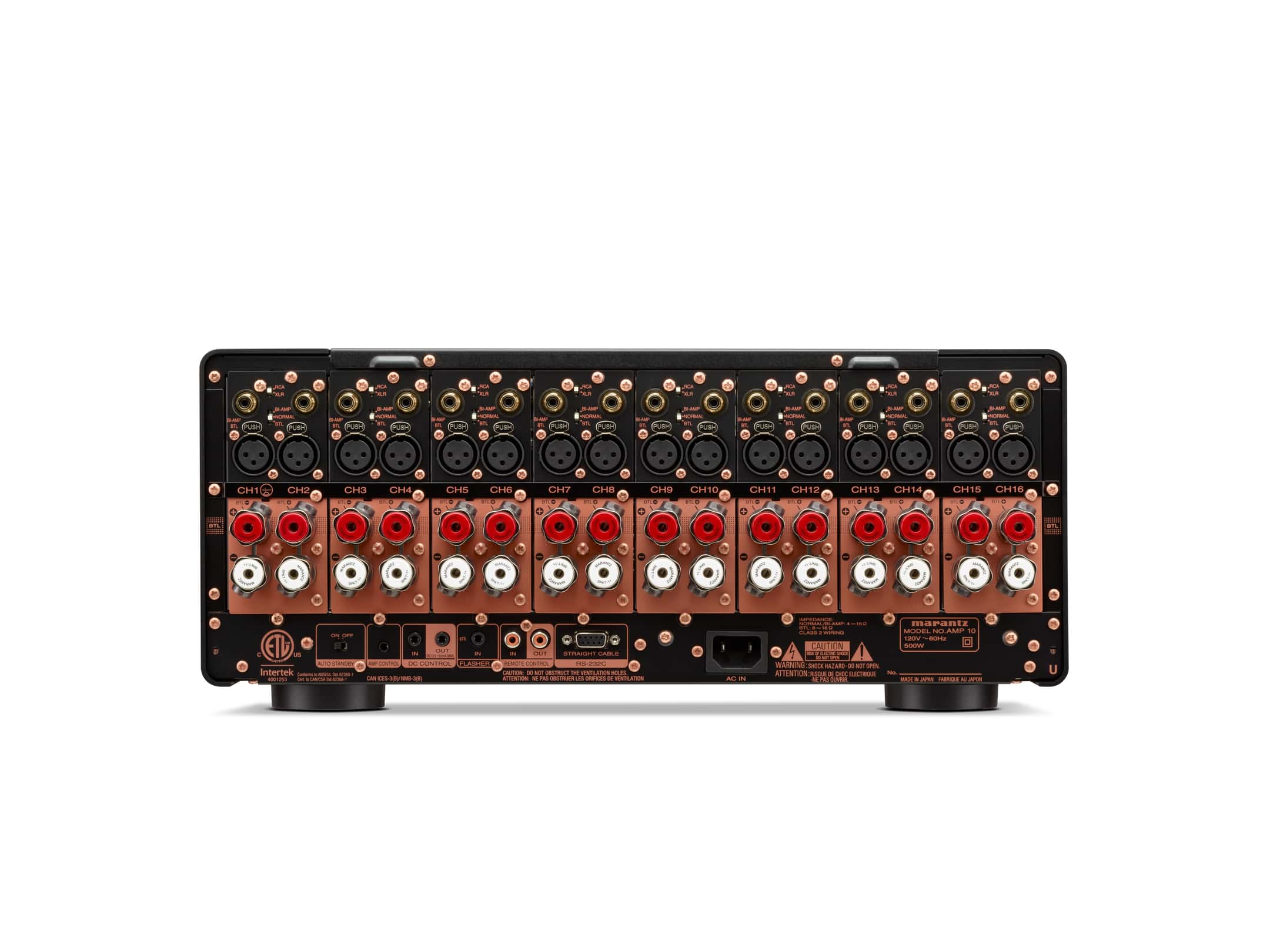

Inputs Outputs

Main Amplifier in Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker Terminal SPKT-1+
Number of Speaker Terminals 16
Bi-Amp Drive /BTL Drive Yes / Yes
Level Meter Yes
Chasiss Copper Plated

Specifications

Number of poweramps 16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
70% Guarantee(Normal/Bi-Amp/BTL) Yes
100% Guarantee(Normal/Bi-Amp) Yes

General

Metal Front Panel Yes
Pre-Programmed / Learnable / LCD Display No / No / No
Power Consumption in W 500
Power Consumption No-Sound (ECO on/off) in W No / 140W
Standby Consumption in W 0.2

Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm No x No x No
Antenna:Vertical :(W x D x H) in mm ( No x No x No )
W/o Antenna:(W x D x H) in mm 【 17.4 x 19.2 x 7.4 】
Neto weight 20kg

Package Contents: Marantz 16Ch Power Amplifier AMP 10, Power cord, Remote control connector cable, AMP control connector cable, Speaker terminal wrench, Manual.
